Hivotec Manual and Motorized Cable Tools (Peeling, Stripping,Sheathing Cables)



We offer a full range of specially designed modular peeling and stripping tools :
  • CP90 Peeling & stripping tool for a diameter range of 35 – 95 mm (optional Drive)
  • CP130 Peeling & stripping tool for a diameter range of 75 – 135 mm (optional Drive)
  • CP185 Peeling & stripping tool for a diameter range of 125 – 185 mm
  • Unipower 34R Drive attachment to motorize CP90 and CP130

CP Series

  • CP 90
  • CP 130
  • CP 185
  • Unipower 34R
  • Tooling

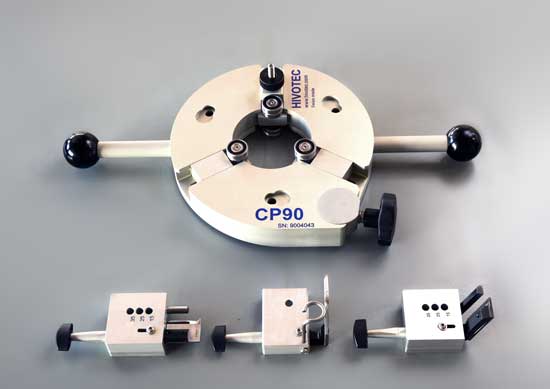

CP90 The basic tool is equipped with knives for the peeling of the semicon and the stripping of the main insulation.

Main Technical Data

Range of cable diameter mm 35..95
Weight of tool kg 4.0
Maximum peeling depth mm 2.0
Min. length of remaining semicon mm ~70
Cutting depth for insulation mm 3...35

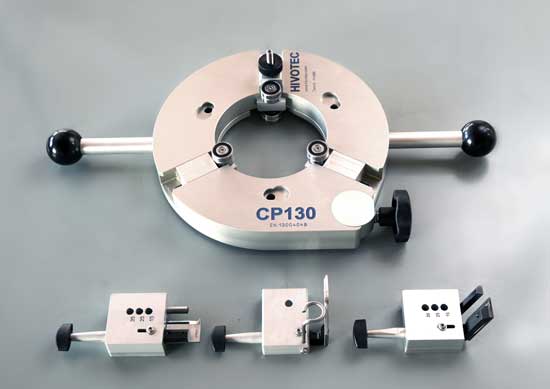

CP130 The basic tool is equipped with knives for the peeling of the semicon and the stripping of the main insulation.

Main Technical Data

Range of cable diameter D mm 75..135
Weight of tool kg 4.5
Maximum peeling depth mm 2.0
Min. length of remaining semicon mm ~70
Cutting depth for insulation mm 3...35

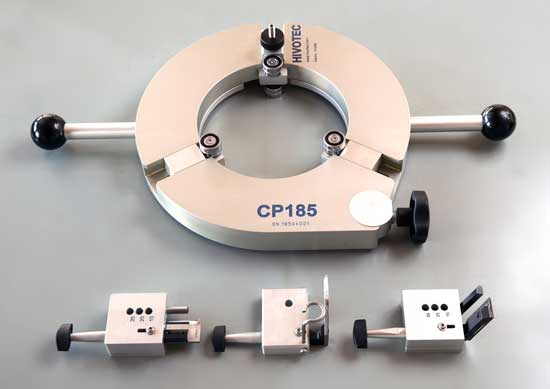

CP185 The basic tool is equipped with knives for the peeling of the semicon and the stripping of the main insulation.

Main Technical Data

Range of cable diameter D mm 125..185
Weight of tool kg 5.5
Maximum peeling depth mm 2.0
Min. length of remaining semicon mm ~70
Cutting depth for insulation mm 3...35



Unipower 34R Gear transmission to motorize the CP90 and CP130 with your own manual drilling machine. Easy click on attachment that fits onto CP90 and CP130 when you need it.
Drive shaft diameter 10 mm

Tooling In addition to the basic equipment of our tools such as knives for Semicon peeling and insulation stripping we offer toolholders or knives for :

  • Chamfering
  • Slot making
  • Special Knives and toolholders for other applications upon request

Variations and options

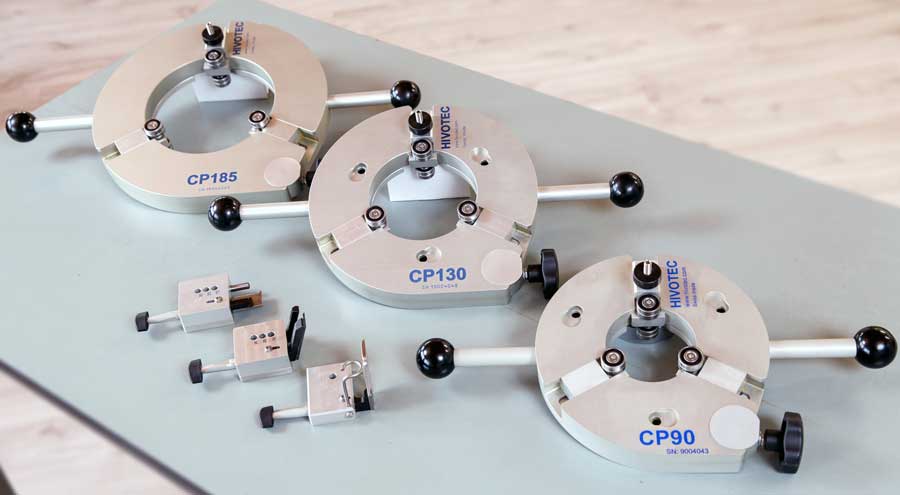

CP Series 90 / 130 / 185

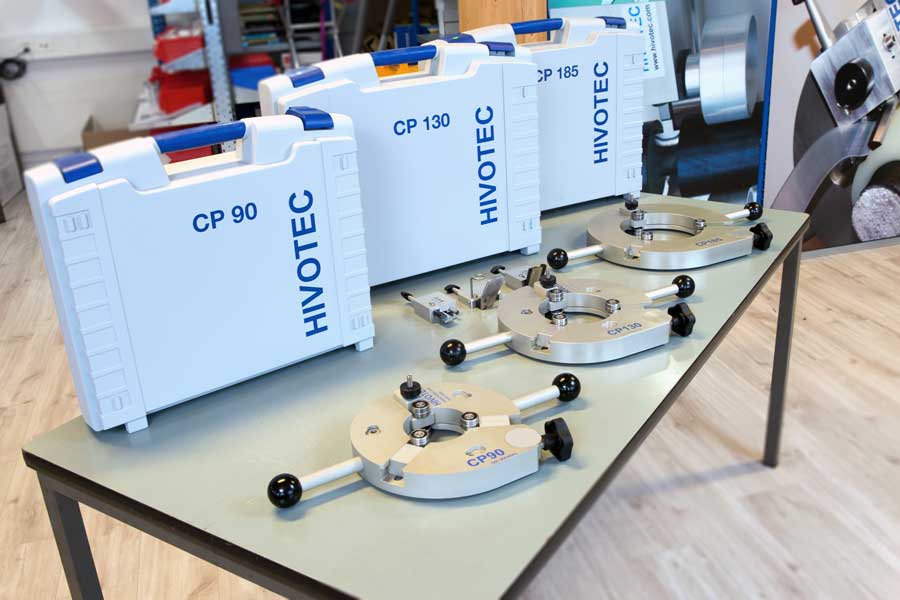

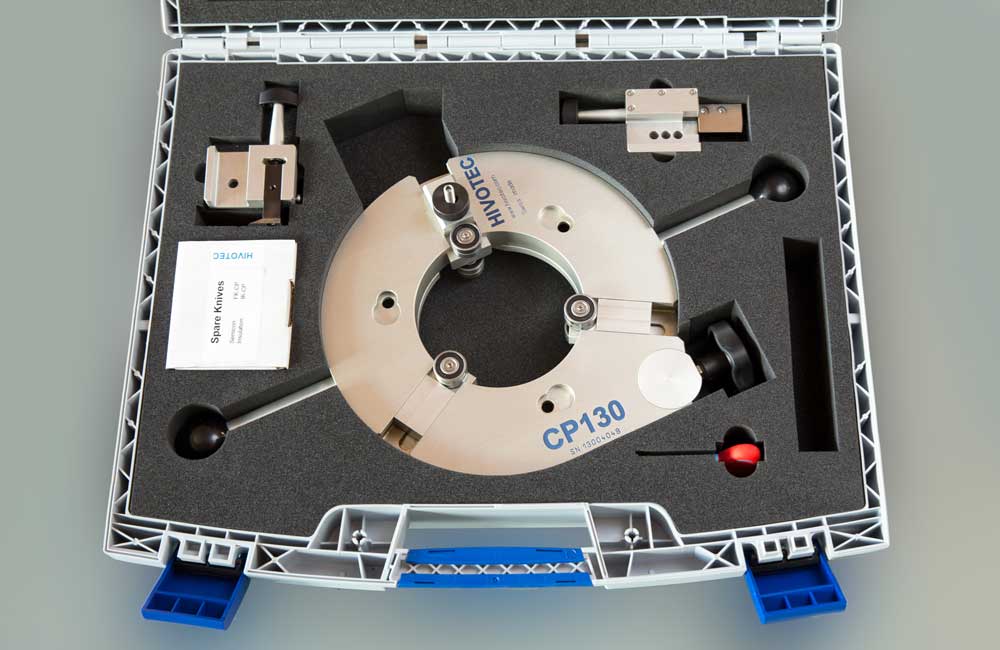

Comes in a handy case

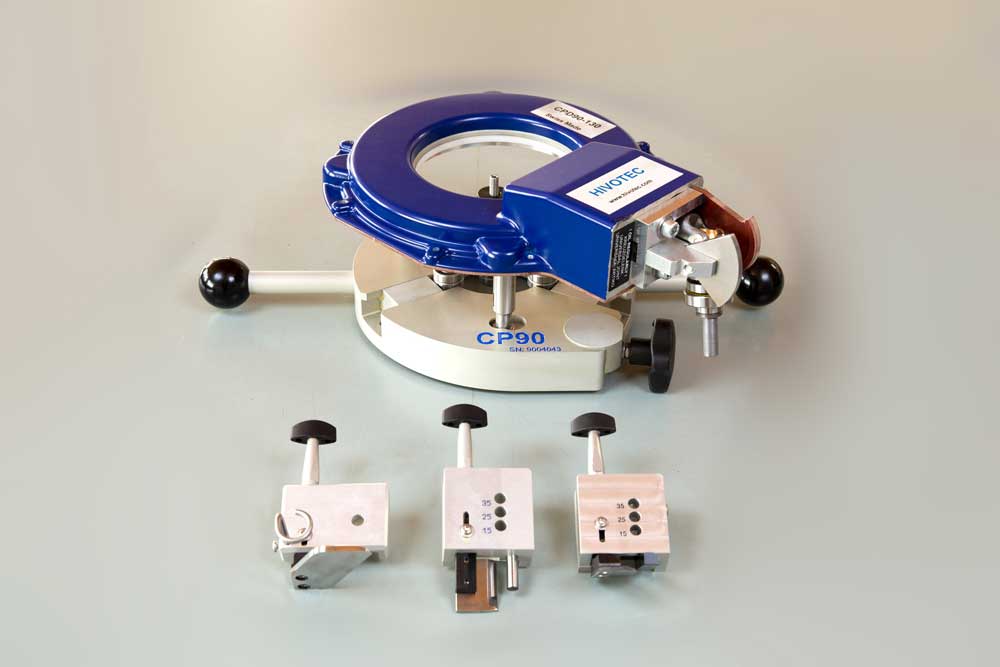

Unipower 34R

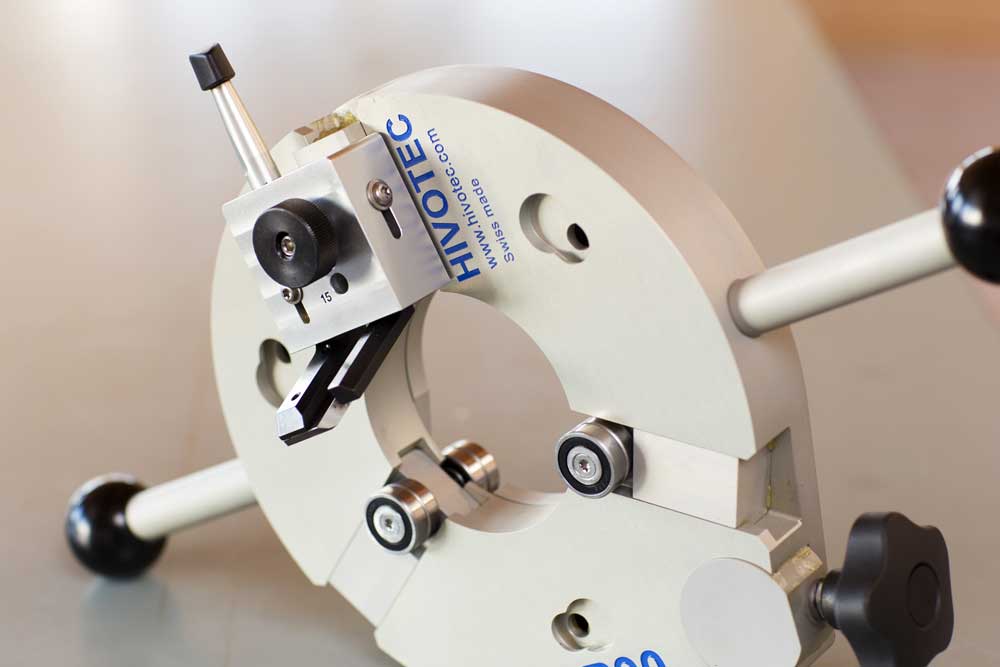

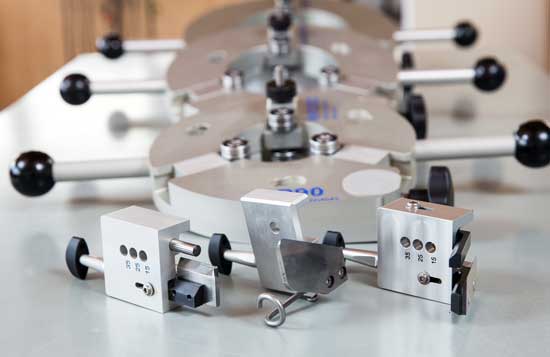

Stripping knife

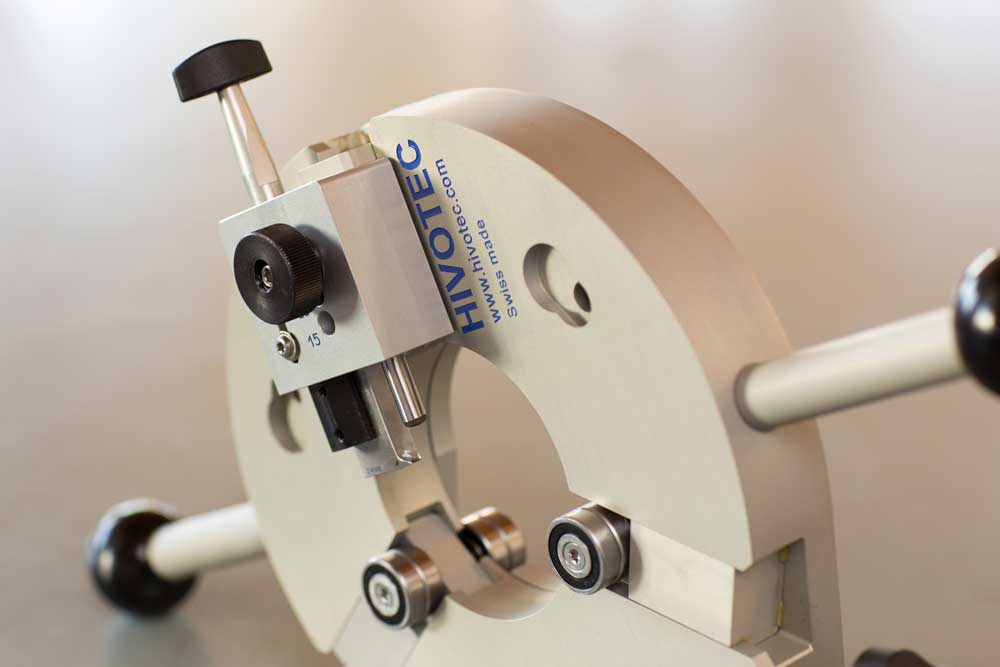

Peeling knife

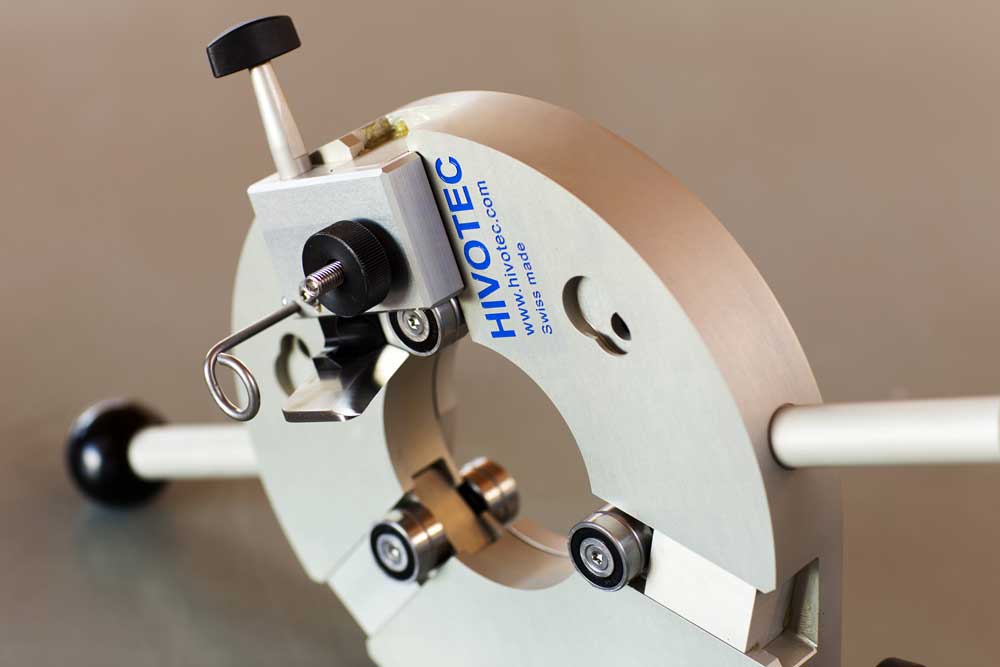

Chamfering knife

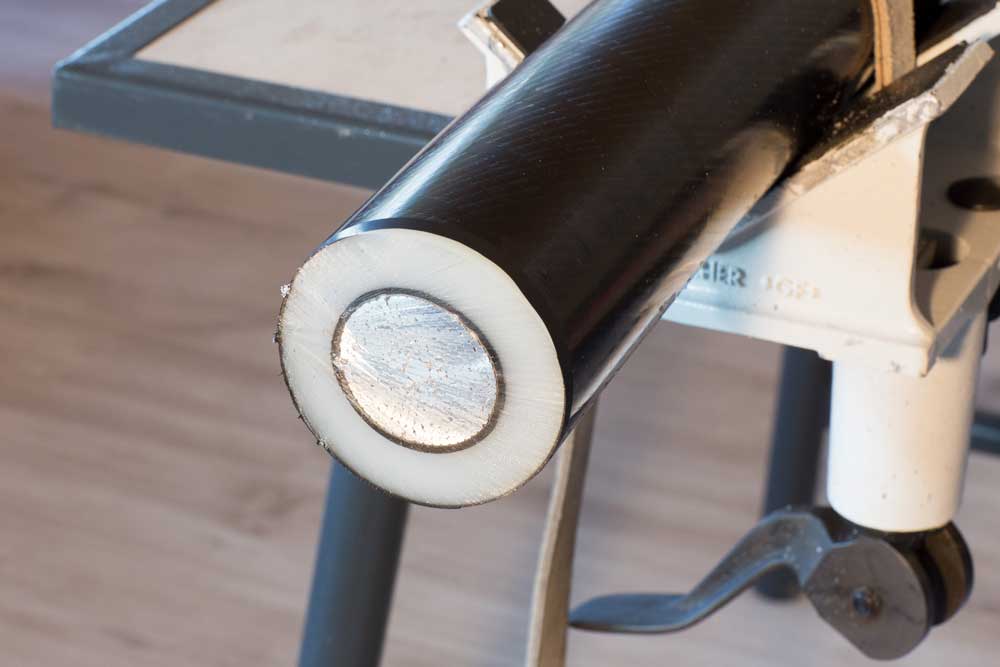

Insulation stripping

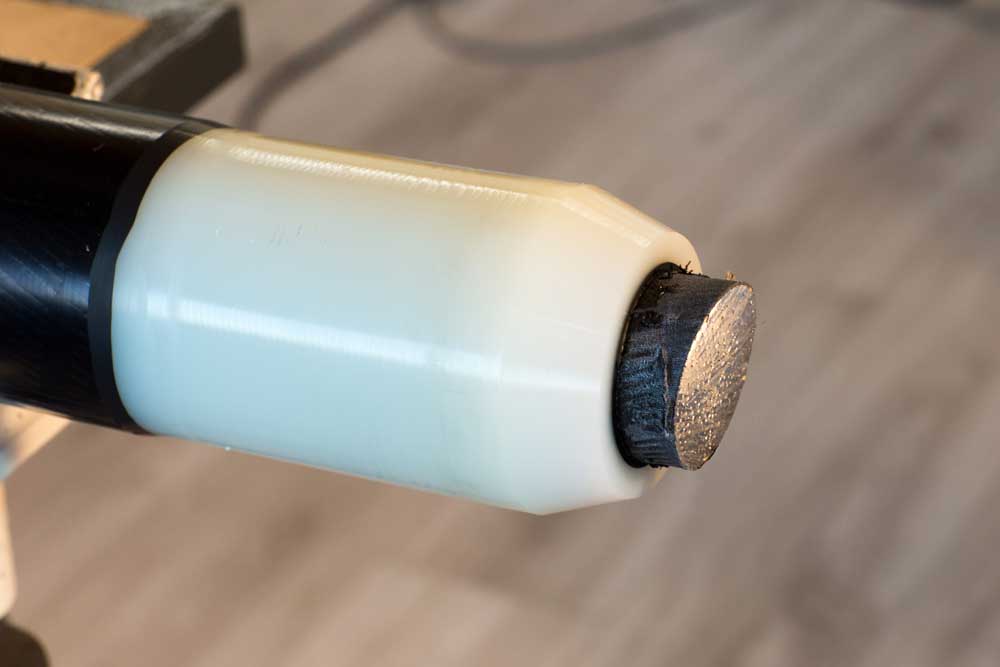

Peeling and chamfering

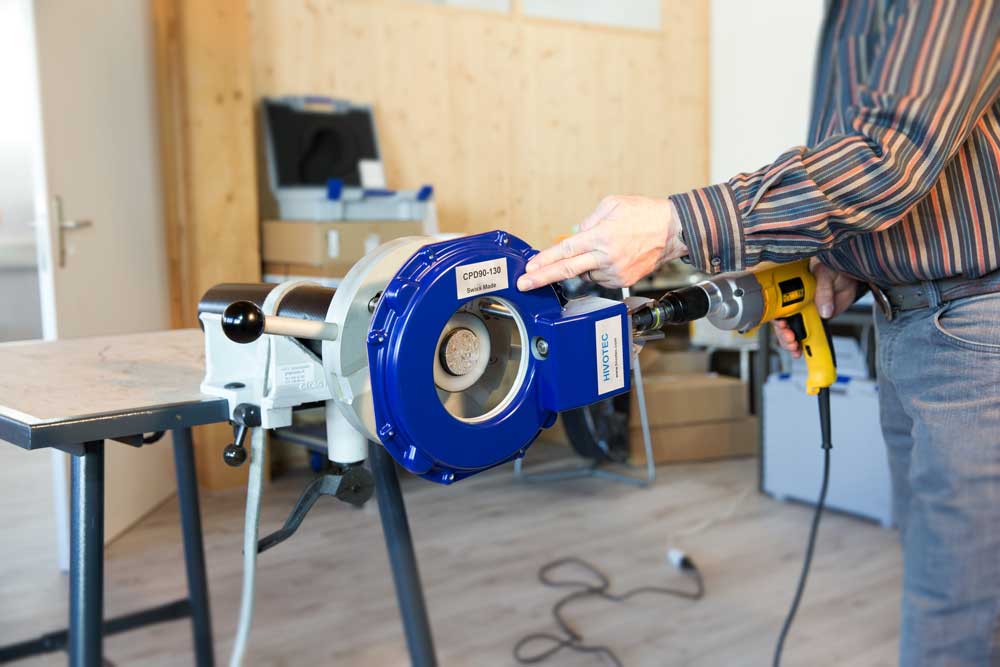

Unipower 34R in action
